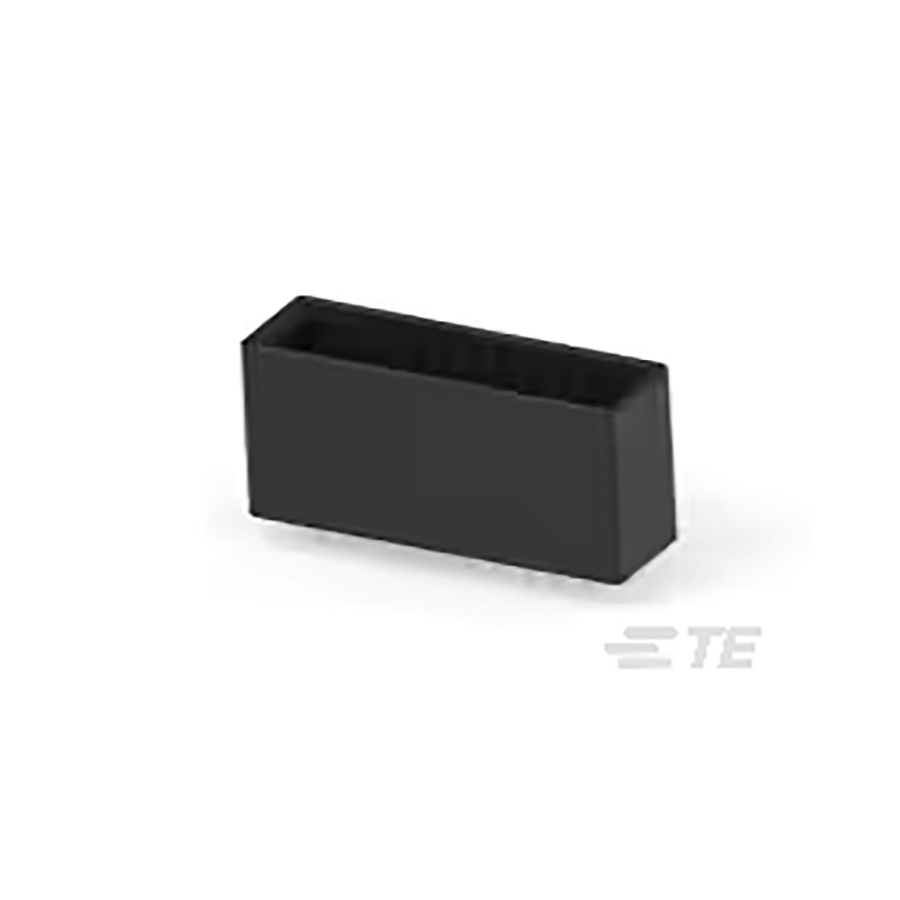

178328-2
Manufacturer:
TE Connectivity
Mfr.Part #:
178328-2
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Plug, Tab Number of Positions:20 Pitch:3.7846 mm
| Parameter | Value |
|---|---|
| Length | 48.29 mm |
| Width | 14.4272 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 21.59 mm |
| Packaging | Tube |
| Voltage Rating | 250 V |
| Depth | 14.43 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Gold |
| Pitch | 3.7846 mm |
| Number of Terminals | 20 |
| Current Rating | 15 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 20 |
| ELV | Compliant |
| Connector Type | Header, Plug, Tab |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 5.08 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Connector System | Wire-to-Board |
| Contact Style | Straight |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 15 A |
| Housing Color | Black |
| PCB Thickness | 1.6002 mm |
| Tail Length | 3.8 mm |
| VDE Tested | No |
| Preloaded | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
| Mating Retention | With |
| Mating Alignment | With |
| Termination Post Length | 3.8 mm |
Stock: 228
Distributors
pcbx
pcbxUnit Price$3.93446
Ext.Price$3.93446
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.93446 | $3.93446 |
| 10 | $3.21571 | $32.15710 |
| 25 | $2.97958 | $74.48950 |
| 50 | $2.76079 | $138.03950 |
| 100 | $2.55808 | $255.80800 |
| 300 | $2.47650 | $742.95000 |
| 500 | $2.39755 | $1198.77500 |
| 1000 | $2.29357 | $2293.57000 |
